Intermittent bonded ribbon production line explained

Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. supplies equipment for producing rollable formats used in optical-fiber manufacturing. This setup is designed for 12- and 16-fiber ribbons, allowing buyers to assess its capacity against their planned product range. Its split-type construction may also affect factory space and installation requirements.

Fiber Draw Tower
FTTH Cable Production Line
Compact Fiber Unit

The stated construction speed for this particular production line is 600 m/min. The process combines fiber pay-off, gathering and guiding, intermittent resin dispensing, UV-LED curing, visual monitoring, capstan pulling, and take-up. When assessing suitability, the entire process matters rather than speed alone.

Before purchasing, review factory utilities, reel requirements, available floor space, and installation conditions. Request the supplier’s documentation package and verify that the system matches your cable design and operating needs. Early planning for these details can reduce setup delays and make startup smoother.

Main Takeaways

• Designed for rollable 12- and 16-fiber formats.
• Specified equipment speed: 600 m/min.
• Features a split-type construction.
• Includes curing, monitoring, pulling, and take-up stages.
• Check utilities, reels, installation needs, and supplier documents before buying.

Intermittent Bonded Ribbon Production Line

Examine The Intermittent Bonded Ribbon Production Line

To create rollable IBR formats, three mold groups arrange fibers for the application of small adhesive dots. Mold position is adjustable by operators from 0 to 15 mm, helping produce consistent spacing and form.

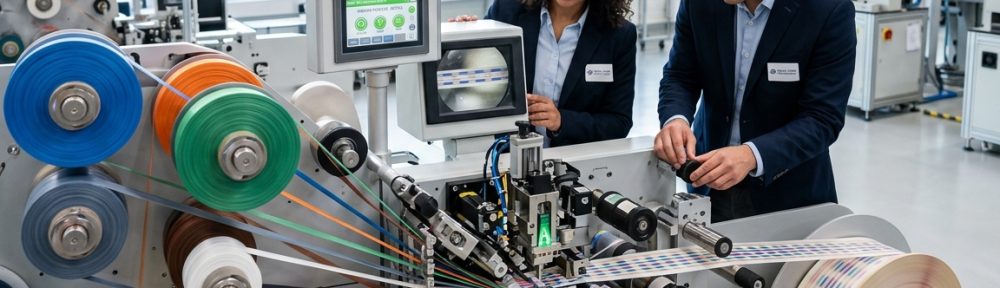

Make Rollable Fiber Ribbons Using Precision Bonding

A 16-spool pay-off supplies fiber to the machine, while guide rollers with U-shaped grooves keep individual strands organized. Hard-anodized roller surfaces support steady contact during processing. For 12F and 16F layouts, the adjustable valve setup uses 5+5+1 valves for 12 fibers or 5+5+5 for 16. Ask the supplier to verify tension control settings that suit your particular cable design.

Run 12- And 16-Fiber Configurations At Up To 600 m/min

Construction speed is listed at up to 600 m/min. The listed reel dimensions, Φ236 mm × Φ25.4 mm × 108 mm and Φ267 mm × Φ25.4 mm × 180 mm, correspond to pay-off reel options holding 25.2 km or 50.4 km of fiber. T-type and fiber-optic take-up reels are also available for this system. Assess whether reel capacity matches your operating needs and anticipated changeover time.

Review The Production Line’s Key Equipment And Controls

Consistent output depends on aligning tension, resin placement, and UV exposure. Operators can use the system to match settings with the needs of their cable design and fiber ribbon.

Coordinate Fiber Tension, Resin Dispensing, And UV-LED Curing

Electro-pneumatic adjustment is provided for each pay-off unit. Through the interface, operators set adhesive-dot spacing and counts while dispensers work individually or in linked groups.

Before UV-LED post-curing, three pre-curing ovens work with the mold groups. Verify resin compatibility and operating conditions with the supplier.

The Siemens PLC and touchscreen display lamp current and oven temperature, generate alarms, and support preset lengths. Before purchase, verify cabinet requirements and power supply needs.

Plan Installation, Operating Conditions, And Line Configuration

Before the machine is delivered, prepare a dedicated operating area. An enclosed, clean, dry, draft-free space is required for the optical fibre system. Maintain temperatures between 15°C and 25°C and humidity at or below 85%. These conditions help safeguard fiber equipment and maintain precision during operation.

Review site utilities, electrical capacity, cabinet space, and cable design with your facilities team. Nitrogen at 7 bar with 99.99% purity and compressed air at 6 bar are specified for the system. A three-phase, five-wire electrical supply rated 380 V ±10% is required.

• Allow space for the cabinet, components, resin, and access to service parts. Before starting the line, confirm the temperature settings and tension control.
• Plan around the specified reel dimensions of Φ410 mm × Φ50.8 mm × 391 mm. Reels of up to 30 kg can be handled by the take-up unit.
• Include the main power feed-in cable in your site plan. The equipment package does not include connection cables and cable trays.

The supply scope, reel types, and installation needs should be confirmed before placing an order. This assessment can shorten setup time and help prevent later delays. Ask the supplier to verify settings for your fiber and cable design, including lamp accuracy and operating conditions. A clear plan helps the production system start more smoothly.

Obtain Pricing For A Ribbon Production Solution Matched To Your Needs

At its stated speed of 600 m/min, this line can be considered by manufacturers producing rollable 12- or 16-fiber formats. Share details of your fiber layout, output targets, cable requirements, reel preferences, and factory conditions to obtain a quotation.

Check the proposed system for its 16-spool pay-off, UV-LED curing setup, take-up capacity, and included options. Before ordering, review the included components, dispensing-head options, unit functions, and cable design.

Listed documents include operating and maintenance manuals, a general layout drawing, electrical schematics, and a wear-parts list. These documents can help assess setup time and ongoing service needs.

Contact Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. to request pricing and configuration details that suit your output plan and site utilities. Verify the supply scope and replacement parts before purchase.
